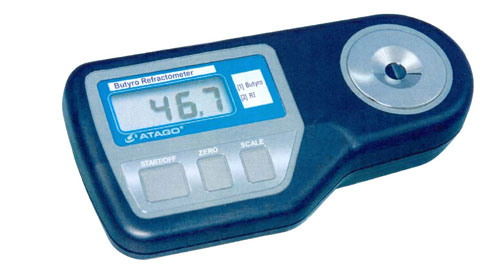

  1. Digital Butyro Refractometer- PR-BUTYRO

    New ATAGO digital model PR-BUTYRO is perfect for butter, ghee & edible oil industry for checking purity / adulteration
  1.
Features
  • Calibration with Standard liquid
  • Large, easy to read display
  • External Light Interference (ELI)
  • Display of both Butyro & RI scale
  • Temperature Compensated scale at 40° C
  • Automatic & Accurate (Accuracy : Butyro ± 0.5)
Specification
Measurement(Automatic Temperature Compensation) Butyro 30.0 ~ 90.0      RI 1. 4450 ~ 1.4850 (Converted at 40° C)
Minimum Indication Butyro 0.1                   RI 0.0001
Measurement Accuracy Butyro ± 0.5 (at 40° C)  RI ± 0.0003 (at 40°C)
Measurement Temperature 10~50° C (Automatic Temperature Compensation)
Ambient Temperature 10~50° C
Sample Volume 0.1 ml or more
Measurement Time 3 seconds (approximately)
Power Supply 006P dry battery (9V)
International Protection Class IP 64 Water Resistant
Dimensions and Weight 17(W) x 9(D) x 4(H)cm, 300g (Main unit only)

* External Light Interface (ELI)
When intense light penetrates the prism of a digital refractometer, the light waves may interface with the sensor resulting in inaccurate readings.
To ensure accurate measurement results each time, the PR-BUTYRO is programmed with the ELI function to display the warning message "nnn" when intense direct light is detected. Forming a habit of shading the sample stage with your hand and re-pressing the START/OFF Switch (when the warning message from ELI function is displayed) will ensure accurate measurement results each time.
Application
Edible Oil
Butter
Ghee
