Measure Hatch Angle SPM04

Download Product Broucher



Vardhan SPM04 is a specially designed microscope with a high resolution CCD camera to view, instantly photograph & measure exact angle of honing ( Hatch Angle) in honed grey iron cylinder liners used in internal combustion engines. The honing texture consists of two sets of approximately parallel, stochastically placed groves at different angles to the cylinder axis. Engine oil consumption, longitivity and noxious emissions highly depend on the quality of this grove texture.

Vardhan SPM04 is interfaced with your own computer. The Honing texture image is crystal sharp & can be directly seen on the computer monitor. The image can be saved as a traceable record, exact angle of honing is measured by a user friendly software. This novel set up completely replaces the old method of testing the liner surface by fax film.

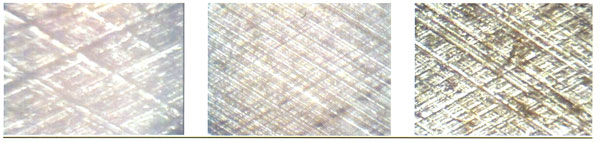

Honing patterns in cylinder liners photographed by Vardhan SPM04 Microscope

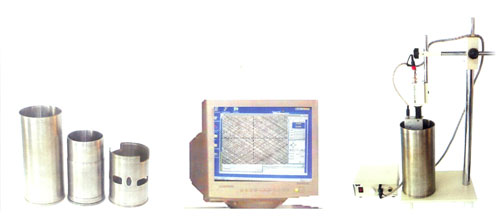

Computer Interface attachment

Measuring Software
  • User friendly licensed software Calibration Facility
  • Calibration Facility
  • Measurement of distance, Angle, Circle properties(Radius), Straightness, Parallelism, Perpendicularity
  • Full fledge Help Facility
  • SPC (statistical process control), Cause effect Pareto Analysis, X Chart, R Chart, X Bar Chart, Histogram, Cause effect chart, Process statistics & SPC Help
  • Cross hair tool, Rectangle tool, Circle & double line tool
  • Line width, type and color change, Annotation & Edit Mode
  • DRO function, Cartesian & also Polar coordinates
  • Rotatable Image & also Rotatable coordinates
  • Report generation& printing


Microscope for Millipore Test

Microscope for Millipore Test - SPM08
Download Product Broucher

Foundries & machine shops manufacturing high quality casting for exports market are required to measure degree off cleanness after completion of the cleaning process. Degree of cleanliness is usually specified by the buyer. One or two castings out of a batch of 100 are used for analysis. The casting is sprayed with a solvent.

The solvent is allowed to drip through the casting’s inner bores & is collected together with dissolved impurities. The solvent is then passed through a filter paper, after drying; the filter paper with the impurities is placed on the stage of the microscope for determining particle size.

By Software Method

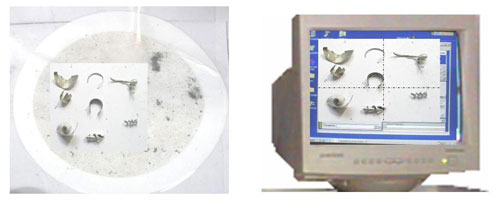

Vardhan SPM08 Microscope is interfaced with the computer & the images can be directly observed on the computer monitor with outstanding clarity & saved as traceable records. Particle size is then measured by user friendly software.

By Manual Method
The eyepieces of Vardhan SPM08 particle size measuring microscope are provided with a built in cross wire reticule. The large size mechanical stage is equipped with drum micrometers on both X & Y axis to manually measure the length, width of the particles.



Computer Interface attachment

Measuring Software
  • User friendly Licensed software
  • Calibration Facility & Full fledge Help Facility
  • Measurement of distance, Angle, Circle properties(Radius), Straightness, Parallelism, Perpendicularity
  • SPC (statistical process control), Cause effect Pareto Analysis, X Chart, R Chart, X Bar Chart, Histogram, Cause effect chart, Process statistics & SPC Help
  • Cross hair tool, Rectangle tool, Circle & double line tool
  • Line width, type and color change, Annotation & Edit Mode
  • DRO function, Cartesian & also Polar Coordinates
  • Rotatable Image & also Rotatable coordinates
  • Report generation& printing

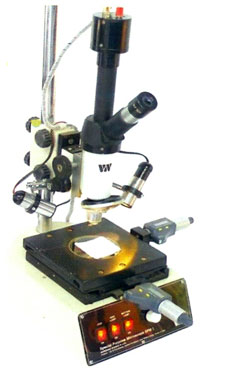

Microscope for Millipore Test - SPM09
Download Product Broucher

Foundries & machine shops manufacturing high quality casting for exports market are required to measure degree off cleanness after completion of the cleaning process. Degree of cleanliness is usually specified by the buyer. One or two castings out of a batch of 100 are used for analysis. The casting is sprayed with a solvent.

The solvent is allowed to drip through the casting’s inner bores & is collected together with dissolved impurities. The solvent is then passed through a filter paper, after drying; the filter paper with the impurities is placed on the stage of the microscope for determining particle size

By Software Method
Vardhan SPM09 Microscope is interfaced with the computer & the images can be directly observed on the computer monitor with outstanding clarity & saved as traceable records. Particle size is then measured by user friendly software. Image can be seen simultaneously in the eyepiece.

By Manual Method
The eyepieces of Vardhan SPM09 particle size measuring microscope are provided with a built in cross wire reticule. The large size mechanical stage is equipped with Digital micrometers on both X & Y axis to manually measure the length, width of the particles.



Computer Interface attachment

Measuring Software
  • User friendly Licensed software
  • Calibration Facility & Full fledge Help Facility
  • Measurement of distance, Angle, Circle properties(Radius), Straightness, Parallelism, Perpendicularity
  • SPC (statistical process control), Cause effect Pareto Analysis, X Chart, R Chart, X Bar Chart, Histogram, Cause effect chart, Process statistics & SPC Help
  • Cross hair tool, Rectangle tool, Circle & double line tool
  • Line width, type and color change, Annotation & Edit Mode
  • DRO function, Cartesian & also Polar Coordinates
  • Rotatable Image & also Rotatable coordinates
  • Report generation& printing
